Point tangent to spline

This function allows you to create a construction line passing from a point and tangent to a spline.

The selected point can either lie on the spline or be a point outside of the selected spline.

Access

• Type "From point tangent to spline" in the Quick Search field, then press Enter.

Procedure

1. Select a point.
2. Select a spline.

In the case of a spline where the tangency conditions are satisfied by more than one position on the spline, you have to select a position on the spline which is close to the area where you need to get the tangency conditions (See example below).

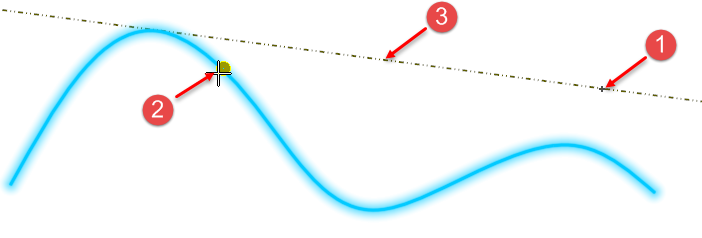

Keys:

1. Selected point
2. Selected spline (position close to the tangency conditions area)
3. Generated construction line
