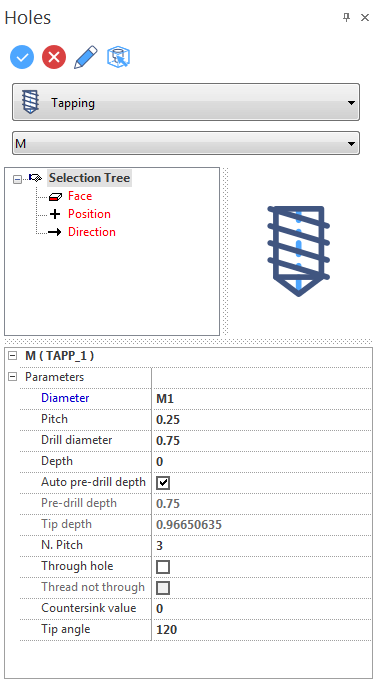

Holes - Tapping

Diameter of the tapping feature that will be created. V1:

1. Click on the field next to this option to activate the drop-down list.
2. Click on the drop-down list.
3. Select the appropriate diameter.

Distance from the crest of one thread to the next. V7

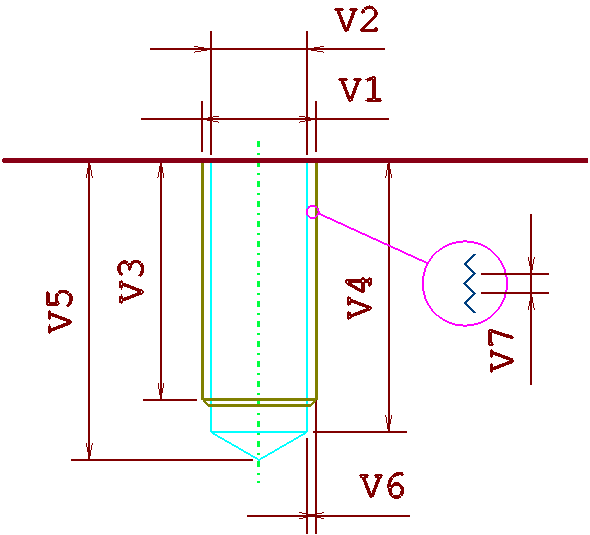

Difference between the diameter (V1) and the pre-drill diameter (V2), which means V6 x 2 in the image above.

Drill diameter of the pre-drill that will be created. V2

Depth of the tapped part of the hole. V3

Check this box to define an automatic value for the pre-drill depth.

Depth of the pre-drill, i.e. the whole depth of the cylindrical face. V4

Depth of the drill calculated at the end of the conic face (tip). V5

Check the box if the tapping feature to be created is a through hole.

Number of pitch that will be performed by the tapping feature. Depending on the pitch value, modifying the N. Pitch value influences the Tip depth and Pre-drill depth.

Value of the chamfer that will be created on the edge of the selected element.
