Plotter - System parameters - Print options

The plotting system options for the management of the drawing printing can be set from the Backstage area.

Access

1. Click on the File > Settings > Plotter parameters icon.

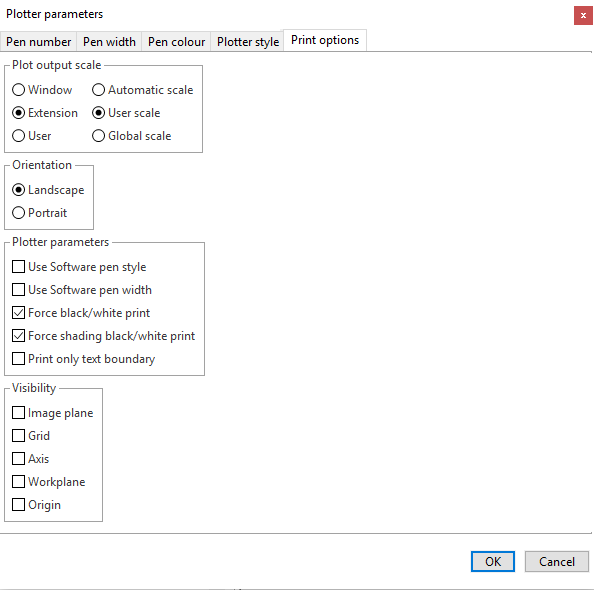

2. Select the Print options tab from the dialog displayed and activate the required options. See image.

Parameters description

• Plot output scale
• Orientation
• Plotter parameters
• Visibility
