Holes - Counterboring + Drilling + Counterboring

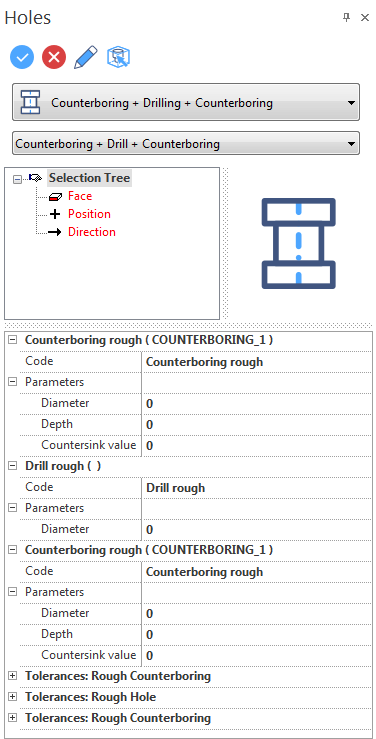

This form creates an assembly that groups two simple counterbores and a simple drill in the selected element.
The counterbore and drill types can be selected from Rough, Normal or Fine.
Parameters

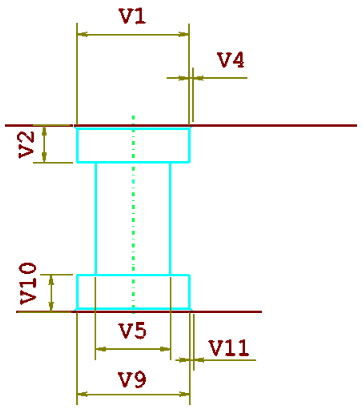

Counterboring 1
|
Diameter |
Diameter of the drill that will be created. V1 |
|
Depth |
Depth of the drill that will be created. V2 |
|
Countersink value |
Value of the chamfer that will be created on the edge of the selected element. V4 |
Drilling
|
Diameter |
Diameter of the drill that will be created. V5 |
Counterboring 2
|
Diameter |
Diameter of the drill that will be created. V9 |
|
Depth |
Depth of the drill that will be created. V10 |
|
Countersink value |
Value of the chamfer that will be created on the edge of the selected element. V11 |
